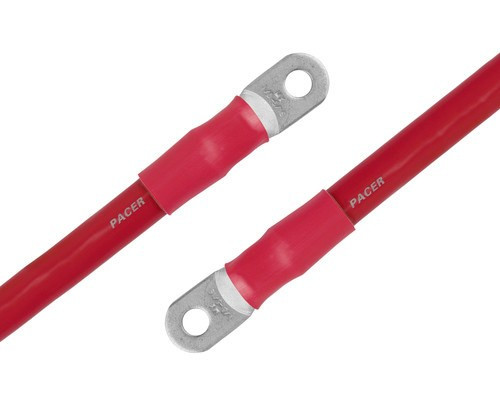

4 AWG, Battery Cable Assemblies, Red

$6.760 - $31.180
SKU:
B4R
Custom Product: This product is made to order, and cannot be returned or refunded. Please allow extra time for processing.
Grand Total:
6.76
Add to Custom Catalog

Related Products

Product Description




AWG 4
Cond. Stranding 7x60/0.0100
Nom. Ins. Thickness 0.060
Nom. O.D. 0.400
Nom. Circular Mils 42000
Nom. MM2 21.3




All Pacer's 4 AWG Red Battery Cable Assemblies are manufactured to order in Sarasota, FL USA. How are they made? Well, the process starts by using Pacer's UL approved marine cables. The cables are cut to length using a precision cut and strip machine. The machine allows for accurate and repeatable cuts. Once the cable has been cut to the proper length, the ends are terminated. Pacer utilizes a hydraulic-pneumatic crimper to create a superior gas tight crimp. After the terminals are crimped, epoxy-lined heat shrink is added. This heat shrink is used to create a moisture and airtight connection. This process creates the highest quality 4 AWG Red battery cable assemblies available. These assemblies are designed so that they outlive the battery itself. Pacer manufactures these assemblies with the boater in mind. They are made to be easy to bend and route and offer excellent flexibility and durability. They are built to withstand the harshest marine conditions possible. They are resistant to Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture. Contact a Pacer expert today with any questions that you may have.



Features:

  • Pacer UL Approved Battery Cable (Type III Stranded Tinned Copper)
  • Epoxy Lined Heat Shrink
  • Custom Lengths and Configurations Available
  • Easy to bend and route
  • Excellent flexibility with the durable properties of PVC

Compliances:

CABLES:

  • UL Standard 1426 BC-5W2
  • AWM 1232/1284
  • MTW, CSA: TEW
  • ABYC: E-11.15
  • Coast Guard: 33 CFR part 183 Subpart 1

CRIMPS:

  • Exceed UL 486 and MIL-T-7928

Characteristics:

  • Conductor: Annealed fine stranded tinned copper ASTM B172 Class K
  • Insulation: -20 °C to 105 °C Flexible color coded PVC
  • Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
  • Voltage Rating: 600-V
  • Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Print:

  • PACER E157097 (UL)4AWG 600V BC-5W2 105°C DRY, 75° WET OR MTW OR AWM 1232/1284 VW-1 OIL RESISTANT 1 LL102583 CSA TEW 105°C FT1
