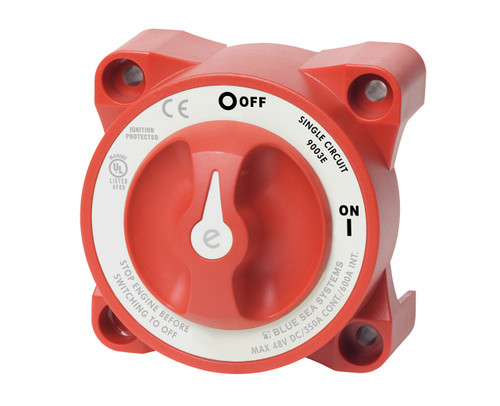

Blue Sea Battery Switch, E-Series, Single Circuit

 Compliances:

• UL 1500
• CE
• IP 66
• ISO 8846
• SAE J1171

Characteristics:

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22 mm) Stud length accepts multiple cable terminals
• Mounting holes: 1/4" (M6) Screw

Blues Sea Systems compact high-amperage switches are vapor/ignition protected and UL listed. Built for safety, this switch can help prevent the spread of fire by isolating the battery. The ABYC requires a switch like this on all boats that have over 800 cranking amps. Battery switches are simple to install and designed to last, even in the toughest marine conditions out there. The E-Series are 350 Amp continuous rated for outboards, small gasoline or diesel engines.  350 Amps continuous, 600 Amps (5 mins.) intermittent rating. Crank rating (10 sec.) 2000 Amps (1 min.) 1000 Amps.

 Features:

• Advanced Multi Stage Charging
• Built In Safety Features
• Durable Aluminum Case
• Tactile indicator knob position by feel
• Fits most Perko and Guest low amperage battery switch hole patterns
• One-piece terminal stud design never loosen over time
• Case design allows surface, rear, or front panel mounting options
• Selector type battery switches with a "make or break" contact design allows switching without power interruption
