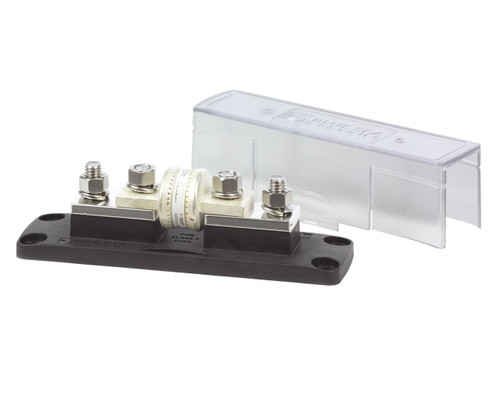

Class T Fuse Block with Cover

$74.610
SKU:
EFB-T
Grand Total:
74.61
Add to Custom Catalog

Related Products

Product Description



Max Voltage 160V DC
Max Amperage 400 Amp
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 4/0 AWG
Maximum Torque 190 in-lb (21.47 Nm)
Terminal Stud Size 3/8" - 16 (M10)

Class T fuse blocks provide circuit protection for devices, including inverters. High interrupt capacity for large battery banks including Lithium-ion and TPPL batteries. Class T fuse blocks have a small footprint, providing substantial space savings in equipment.

Characteristics:

  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • For use on systems up to 160 volts DC
  • Large heat dissipating tin-plated copper mounting blocks
  • Two #8 accesory terminals located on each end
  • Insert molded studs ensure secure fuse mounting
  • Clear insulated cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
