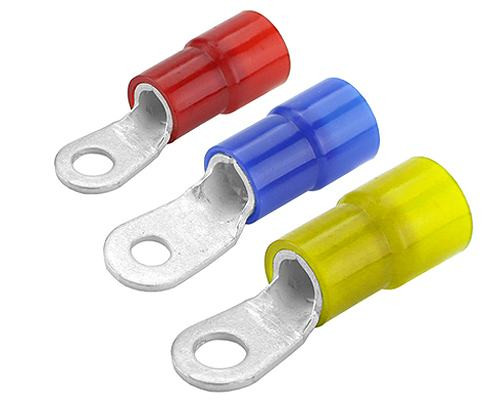

Insulated Brazed Seamed Lug
$3.280 - $189.050
- SKU:
- TLNF
Related Products
Product Description
| Wire Size | Stud Size | Stud Opening | Length | Tab Width |
| 8 AWG | #10 | 0.198" | 1.41" | 0.468" |
| 8 AWG | 1/4" | 0.265" | 1.41" | 0.468" |
| 8 AWG | 3/8" | 0.390" | 1.41" | 0.468" |
| 8 AWG | 5/16" | 0.328" | 1.41" | 0.468" |
| 8 AWG | 1/2" | 0.515" | 1.41" | 0.468" |
| 6 AWG | #10 | 0.198" | 1.61" | 0.480" |
| 6 AWG | 1/4" | 0.265" | 1.61" | 0.480" |
| Wire Size | Stud Size | Stud Opening | Length | Tab Width |
| 6 AWG | 3/8" | 0.390" | 1.61" | 0.480" |
| 6 AWG | 5/16" | 0.328" | 1.61" | 0.480" |
| 6 AWG | 1/2" | 0.515" | 1.61" | 0.480" |
| 4 AWG | #10 | 0.198" | 1.95" | 0.668" |
| 4 AWG | 1/4" | 0.265" | 1.95" | 0.668" |
| 4 AWG | 3/8" | 0.390" | 1.95" | 0.668" |
| 4 AWG | 5/16" | 0.328" | 1.95" | 0.668" |
Insulated brazed seam tinned lugs are used to create durable electrical connections. These lugs are built with longevity in mind. They come in a range of stud sizes and gauge sizes to handle almost any task. Pacer Group carries insulated brazed seam tinned lugs in 8 AWG to 4 AWG. The available stud sizes include; #10, 1/4", 5/16", 3/8" and 1/2". These lugs are made from tinned copper to provide excellent protection. This way, they are corrosion resistant making one less thing you have to worry about. This makes them ideal for use in marine environment.
To use insulated brazed seam tinned lugs, you start by striping your cable to the proper length. Next, slide the lug over the cable with the conductor extending a little past the opening. Crimp with the correct tool and you're done. Selecting the correct insulated brazed seam lug isn't always an easy task. Contact a Pacer Group expert today with any questions that you may have.
Features:
- Tin Plated
- Brazed seams
Compliances:
- UL & CSA Approved
- RoHS Compliant
