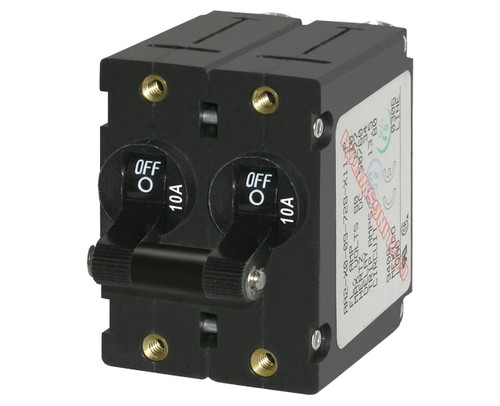

Magnetic Circuit Breakers, A Series, Double Pole, Double Throw

A-series Magnetic circuit breakers are affected strictly by current. this means that they are not by temperature which separates them from thermal breakers. It order to make these breakers as safe as possible, they have been built so that they cannot be forcibly held on. As the current exceeds the amount that is specified by the breaker, the circuit will open. This is one of the many reasons that these breakers are so popular. Look at the chart above to see the interrupting capacity. Selecting the correct magnetic breaker for your application is not an easy task. Contact a Pacer expert today.

Features:

• Operate as a function only of current
• Long trip delay to avoid nuisance tripping
• Cannot be forcibly held on

Compliances:

• Shock: Withstands 100 g or more with out tripping, while carrying full rated current per Mil-Std-202, Method 213, cond. 1
• Vibration: Withstands 10 g without tripping, while carrying full rated current per Mil-Std-202, Method 204, cond. A
• Endurance: Withstands 10,000 operations at rated voltage and current or withstands 50 operations at 600% AC or 1000% DC at rated voltage and current, in accordance with UL 1077
• Moisture Resistance: Meets requirements of Mil-C-55629, tested in accordance with Mil-Std-202, Method 106
• Salt Spray: Meets requirements of Mil-C-55629, tested in accordance with Mil-Std-202, Method 101

Characteristics:

• Operating Temperature: -40°C to 85°C
• Inrush Pulse Tolerance: 10 times rated current
• Panel mounted
• Power switching
• Black housing with choice of toggle color

Applications:

• Marine
• Generators
• Renewable Energy Systems
