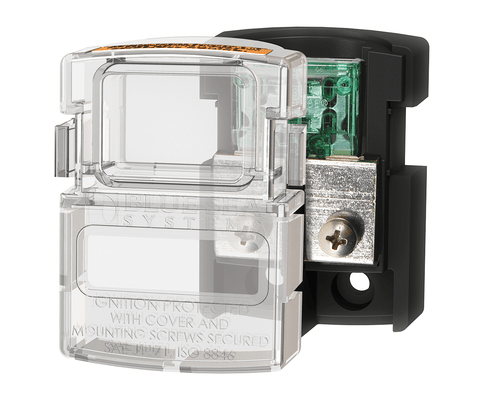

Maxi Fuse Block

$35.870
SKU:
EFH-5006100
Grand Total:
35.87
Add to Custom Catalog

Related Products

Product Description


Maximum Voltage 32V DC
Maximum Amperage 80 Amp
Mounting #10 Screws
Screw Terminal Torque 25 in-lb (2.82 Nm)
Wire Size 14 - 4 AWG
Weight 025 lb (0.11 kg)

Maxi fuse blocks are the ideal way to handle a single circuit fuse block. The block itself can handle up to 80 amps and comes with a durable high quality translucent cover to protect the operator and the fuse block. One important consideration is that this fuse block accepts wires from 14 AWG to 4 AWG from the sides or the bottom. This way you can utilize the Maxi fuse block in the way best suited for your specific needs. Choosing the right fuse block for your applications is not always an easy task. Contact a Pacer expert today with any questions that you may have.

Characteristics:

  • Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
  • Cover breakouts allow wires from sides or bottom
  • Terminal screws compress fuse blades within blocks for low resistance connections
  • Ignition Protected
  • Label recess accepts large format label
  • Fuses sold separately
