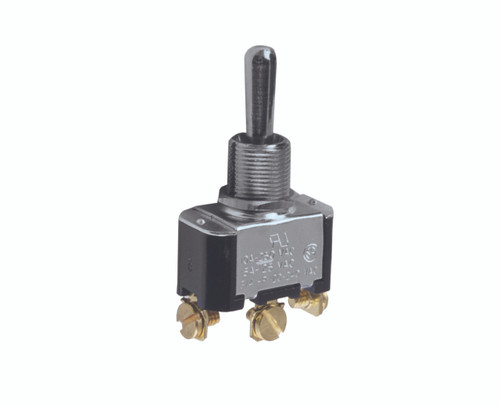

Metal Bat Toggle Switch, Single Pole, Momentary

Compliances:

• UL
• CSA
• VDE

 Ratings:

• 15 Amp 125-VAC
• 10 Amp 250-VAC, 3/4"
• HP 125-250-VAC

Characteristics:

• Base Material: Phenolic
• Actuator (Bat): Brass/Nickel Plated
• Bushing: Brass/Nickel Plated
• Dielectric Strength:  100 V Min.
• Insulation Resistance: 100 Mega Ohm
• Terminal: #6-32NC-2
• Bushing Length: 0.468"
• Panel Mounting Hole: 1/2" Diameter

A Bat toggle switch is an electrical switch that is named for its extra-long bat-shaped handle. This handle is designed for easy actuation. Commonly, they are covered with a protective boot for extra protection. Commonly, bat toggle switches are built to be used in low-voltage, high amperage applications. These applications include such activities as marine and off-road usage. Bat toggle switches are the ideal choice when you need a simple power switch on your boat. To make them even better, bat toggle switches are also available in more complex options in order to handle a variety of potential applications. All the bat toggle switches that Pacer carries are rated at 15A/120VAC. Choosing the proper bat toggle switch for your application is not an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Screw Terminal Connection
• Brass/Nickel Plated for durability

Applications:

• Suitable for both AC and low voltage DC applications
• Commonly used in Marine, Food Service, Generator, Industrial Controls, and Automation markets
